Saturday, March 16, 2013

Drawbot 3 New tools and new board

Here's a snap of my new soldering tools.  Iron, tweezers, flux, tip cleaner, helping hands, solder holder I built.  The iron has .012 inch tip I need to do .025 inch leads.

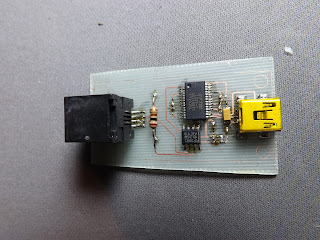

Here's a build up of the USB to RS-485 board.  The first real surface mount board I've built.  It took some time, but wasn't as tough as I thought it would be.
